What Is Automatic Meter Reading (AMR)?
Automatic meter reading is the practice of collecting consumption data from a meter and delivering it to a billing or records system without a manual, on-site read. A meter, or a device attached to it, produces a signal representing volume consumed, and that signal is captured and passed to a central point.
The defining characteristic of AMR is one-way, meter-to-utility data flow. The meter reports, the utility records. That is enough to eliminate walk-by or drive-by reading, reduce estimated bills, and give operations staff a clearer picture of consumption across a district.
Typical AMR building blocks include:
- A meter that measures flow, whether mechanical, ultrasonic, or another sensing method
- A pulse or digital output that converts consumption into countable signals
- A local collector or reading device that captures those signals
- Software that stores readings and passes them to billing
Where AMR fits best
AMR tends to suit organizations that mainly need accurate, timely readings for billing and basic reporting. If the goal is to stop manual reads and produce a dependable monthly or quarterly bill, AMR is usually the shorter, simpler path.
What Is AMI, and How Does It Differ from AMR?
AMI, or advanced metering infrastructure, is a broader system. It still collects consumption data automatically, but it adds two-way communication and, in most deployments, near-continuous data. The meter can be interrogated on demand, and commands or configuration updates can be sent back to the device.
The practical difference is less about the meter and more about the architecture around it. AMI is a network with head-end software, designed to support operational functions well beyond billing.
- Data flow: AMR is one-way; AMI is two-way
- Frequency: AMR readings are usually periodic; AMI readings are frequent, often near real time
- Purpose: AMR is billing-centred; AMI supports billing plus operations
- Scope: AMR can be deployed meter by meter; AMI is a system-wide infrastructure decision
What AMI makes possible
Because data arrives frequently and the connection runs both ways, AMI deployments can support leak alerts, flow anomaly screening, remote diagnostics, outage and tamper notification, and remote configuration. Those capabilities come from the system, not from the meter alone, which is why AMI projects usually involve more planning, more network design, and higher cost than AMR.
A useful way to think about it: AMR answers "how much was used?" AMI answers "how much is being used right now, and is anything wrong?"
Pulse Output: The Bridge Between Mechanical Meters and AMR/AMI
Many water networks still run on mechanical meters, and those meters can be excellent long-term assets. Pulse output is what lets them take part in automatic reading without being replaced.
A pulse-output meter generates a discrete electrical signal each time a defined volume passes through it. Count the pulses, multiply by the pulse value, and you have consumed volume. That simple relationship is why pulse output is so widely used as the interface between a mechanical measuring element and a data collection system.
Pulse values vary by model and application. Gaoxiang's LXS15-300 pulse-output water meter, for example, is offered with 1, 10, or 100 liter per pulse output, a range that lets a specifier match signal resolution to expected flow and to the reading device's input limits.
Why pulse output matters at specification stage
- It allows existing mechanical infrastructure to feed AMR or AMI systems
- It keeps the measuring element simple while moving intelligence to the collection layer
- It provides a clear, countable unit that billing and analytics software can consume
- It makes staged upgrades possible: meter first, network later, or the reverse
One caution: pulse counting is only as good as the whole chain. Pulse value, wiring, input filtering on the reading device, and data handling all need to match. When they do, a pulse-output mechanical meter is a dependable data source. When they do not, readings can drift or double-count, and the fault is usually in configuration rather than in the meter.
Choosing Between AMR and AMI Before You Specify
Start with the outcome you need. If the requirement is accurate billing without manual reads, AMR is often sufficient. If it includes real-time visibility, leak response, or remote management, plan for AMI and treat the meters as one component of a larger system.
Then work through practical constraints: how many meters are involved, whether the location has power and network coverage, whether the meter sits indoors or in a pit, and whether your operations team has the software and staffing to act on frequent data. Adding data nobody uses does not improve a network.

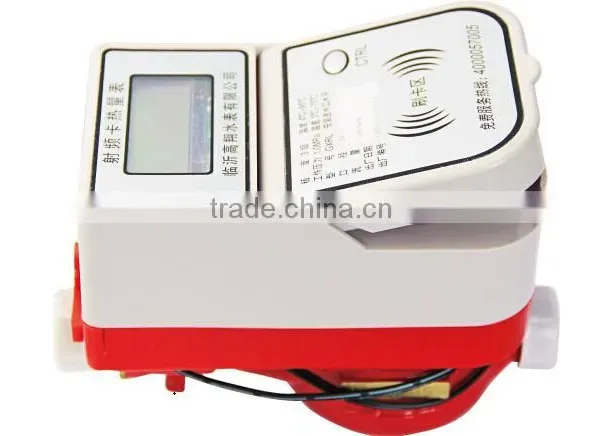

Finally, look at the meter layer. Mechanical meters with pulse output, ultrasonic meters, heat meters, and prepaid meters each serve different needs. Gaoxiang manufactures mechanical water meters, pulse-output meters, ultrasonic meters, heat meters, and prepaid models including IC prepaid and RF prepaid types. According to our official company profile, our water meters hold ISO 4064 regulation approval certificates, and production is covered by ISO 9001:2008 certification. If you are unsure which meter type best fits an AMR or AMI plan, our sales team can walk through the options with you.
